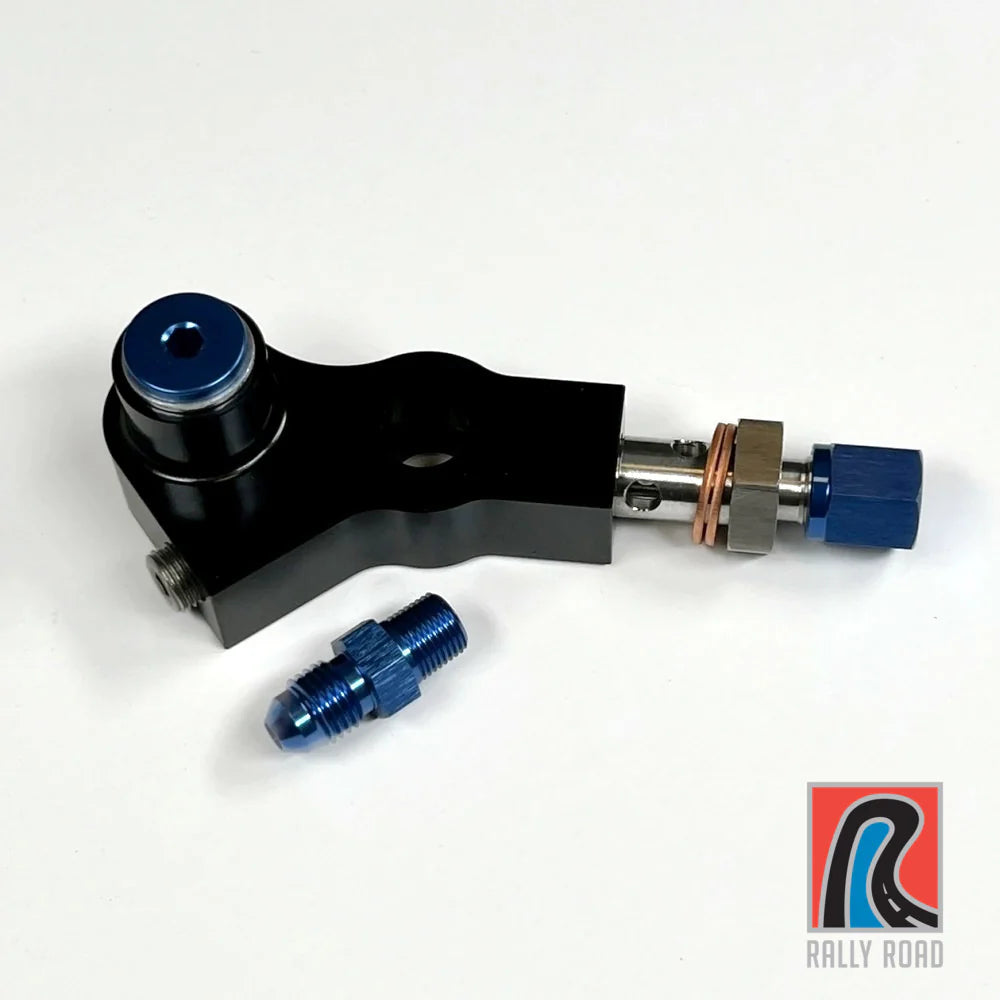

Turbo Oil Distribution Gauge Block
Pickup currently not available
Similar to our standard oil distribution block, this is version also includes a custom 4AN banjo bolt the 2.0mm hole that can be used for a turbo oil feed.
Should you not need the 4AN turbo oil feed immediately, we include a AN hex cap that will seal the fitting until it's needed.
Please note that this 4AN banjo bolt is physically different than the "4AN Vanos Banjo Bolt" we sell.
The stainless steel banjo fitting with 4AN male end will attach the machined block to oil pressure port on your oil filter housing. You can then attach your factory oil pressure sender to one of the M12x1.5 threaded ports. The nice thing about the banjo is that it allows you to rotate/clock the distribution block to the angle that best fits.
The gauge block also has an extra M12x1.5 port and a 1/8 npt port for additional options such as a turbo oil feed and aftermarket oil pressure senders.
We supply both M12x1.5 and 1/8 npt plugs that can be removed when you are ready to add the sender. Two new 12mm copper sealing washers are included with this part.
Contents:
1 Oil Distribution Block anodized black
1 M12x1.5 Plug with sealing washer
1 4AN to 1/8npt Adapter Fitting
1 Stainless 1/8 npt Plug* (installed only finger tight...you must use sealant and tighten)
1 Stainless 4AN Banjo Bolt
2 Copper Sealing Washers
Rally Road Oil Gauge Block Applicable Engines:
M50, M52, M54
S50, S52, S54
M10, M30
BMW Models:
3 Series
E30 (84-91) > 318i
E30 (84-91) > M3
E36 (92-99) > 323is, 323i, 323ic, 325is, 325i, 325ic, 328i, 328is, 328ic
E36 (92-99) > M3 (1995-99)
E46 (99-05) > 320i, 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, 330xi
E46 (99-05) > M3
5 Series
E34 (89-95) > 525i M50
E34 (89-95) > 535i
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 2.5, Z3 2.8, Z3 3.0
E36/7 / E36/8 Z3 (96-02) > Z3 M - S52
E36/7 / E36/8 Z3 (96-02) > Z3 M - S54
E85 / E86 Z4 (03-08) > Z4 2.5i M54, Z4 3.0i M54
E85 / E86 Z4 (03-08) > Z4 M
