11-14 Mustang Quick Angle Kit

100% BOLT ON, NO DRILLING REQUIRED!

A seriously capable kit for a seriously good price, the Scotidi Quick Angle kit takes the new approach to drifting suspension parts. It may seem that a full custom spindle and control arm setup is the only way to get a high performing kit, but the quick angle kits have proven otherwise. The bolt on spindle adapters provide the same benefits that a standalone spindle would at a fraction of the price, and allows you to keep more easily replaceable parts on your car.

This kit offers:

• a verifiable 62° of steering angle

• 3 position ackerman adjustment

• roll center correction

• PTFE lined rod end joints for more steering feel and to eliminate the squirm of rubber bushings

• Stock spindle trail correction

• Version 2.0 now has 1 piece arms! While the 2 piece arms added on car adjustment, they proved to be finicky and less robust. Not to mention the 1 piece arms are stronger, simpler, and less expensive!

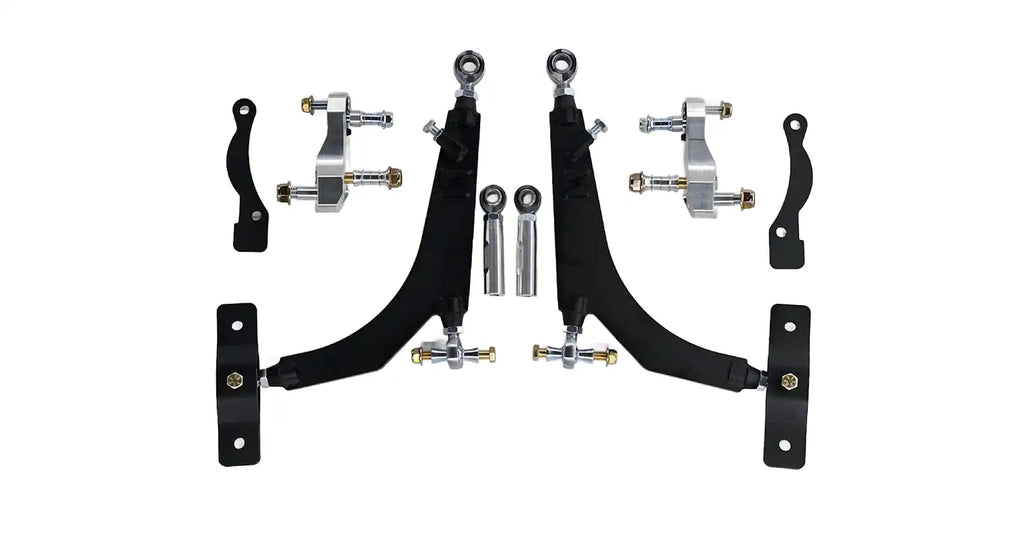

This kit includes:

Spindle Adapters

• 1.625" Roll center correction

• 3 position ackerman adjustment

• Optimized steering arm length to maximize angle

• BIllet Aluminum construction

• Steering stop plates that bolt on to the factory spindle

Control Arms

• Double shear rear mount

• Integrated steering stop

• Minimum 2" over factory arm length

Extended Tie Rods

• Extended length for drift applications

• PTFE lined rod ends

(The selection of model year is based upon the ball joint size. If you are unsure of which model year or ball joint/spindle combination you have, you can measure the diameter of the ball joint shaft or the mating hole. The 05-10 will have a ~.705” diameter ball joint and the 11-14 will have a .750”.)

*Requires coil over kit

* NOT DOT APPROVED, TRACK USE ONLY!
