10-14 Mustang (S197) Upper Control Arm

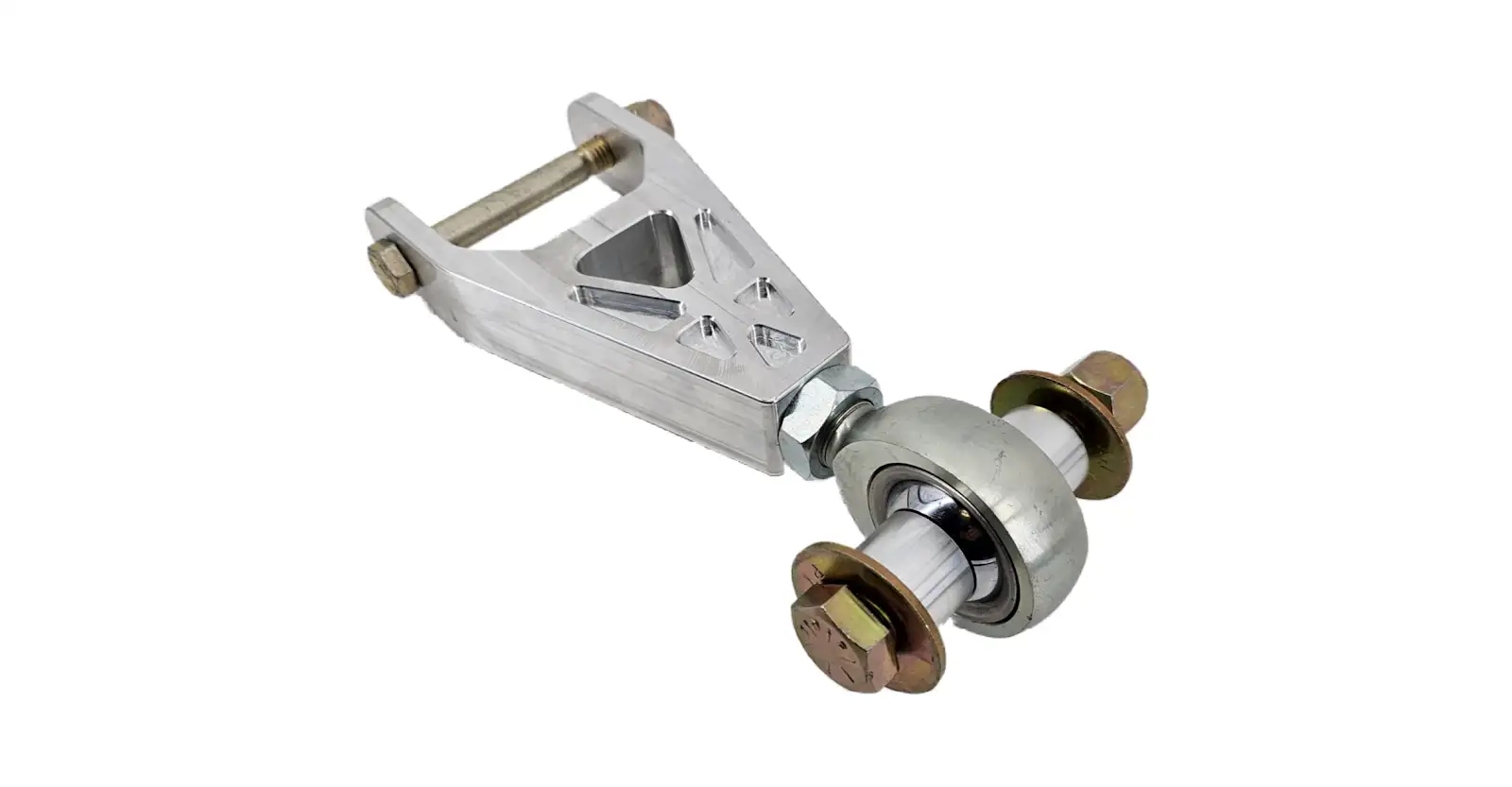

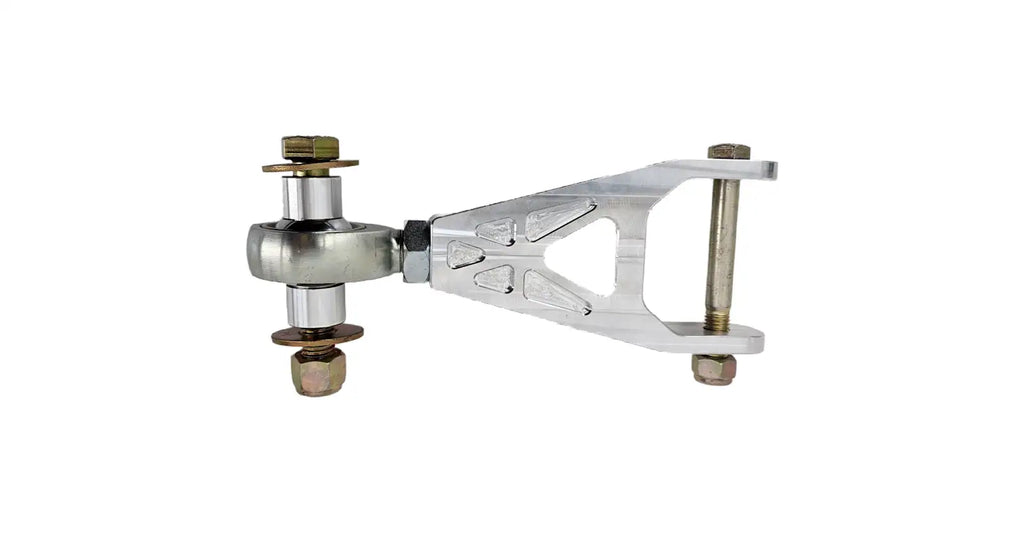

Improve grip, eliminate wheel hop, add strength, and most importantly, dial in that pinion angle. The Scotidi S197 UCA far surpasses the market standard by giving you a billet body and self lubricated 1" Rod end.

Most of the upper control arms on the market are flimsy sheet metal welded together with either a rubber or urethane bushing which does nothing for wheel hop or suspension deflection.

Although our arm is not ON CAR adjustable, this is a component that we felt didnt need that feature at the expense of every other benefit of this arm. When paired with our UCA instant center adjustment bracket, the pinion angle will remain constant no matter which IC setting it is on, and pinion angle is a one time setting.

• Massive 1" Rod end for longer life and higher load capacity

• Adjustable pinion angle via the rod end

• Solid mounts and billet body mean zero deflection in the upper arm

• Can be used with stock or aftermarket UCA chassis mounts

• Can be used with stock or aftermarket UCA differential mounts

• We advise using a spherical bearing UCA differential mount to eliminate bushing deflection

*THIS CONTROL ARM WILL WORK WITH 05-10 MUSTANGS WHEN PAIRED WITH ANY 11-14 UCA MOUNT*

For Track use only, NOT DOT APPROVED.
